About the Lab

Welcome to the technical breakdown! This page details how this lab is architected, the Azure services used, and how everything is tied together using Terraform and CI/CD.

Architecture Overview

• Azure App Service – Hosts the main website frontend
• Azure Blob Storage – Stores static site assets and backend game data
• Azure Functions – Handles serverless backend logic (like high scores)
• Azure Managed Identity – Secure resource access (no secrets in code!)
• Azure DNS – Manages the jacobsazlab.com domain and routing
• GitHub Actions – Automates infrastructure deployment and updates using Terraform

Key Features & Practices

• Fully deployed and managed with Terraform (Infrastructure as Code)
• Managed Identities for secure, passwordless resource access
• Automated CI/CD pipeline: push to main = deploy infrastructure
• Custom domain (jacobsazlab.com) managed by Azure DNS, registrar is squarespace
• Low monthly cost (< $30/month, intentionally overengineered for learning)

Infrastructure Diagrams

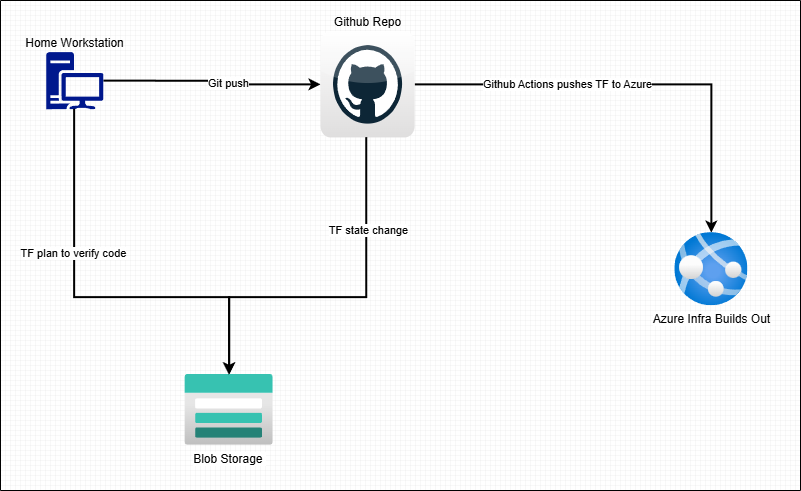

Terraform to Azure CI/CD Flow

• Make Terraform changes locally in VSCode on my machine.
• Run terraform plan to review proposed changes and verify syntax.
• My account reaches out to the storage account hosting the Terraform state file for planning.
• Access is managed via RBAC permissions on the storage account.
• Once satisfied with the plan, push changes to my GitHub repo.
• GitHub Actions workflow is triggered, running terraform apply against the Azure environment.
• GitHub Actions uses RBAC permissions (service principal) to deploy/update resources in Azure.

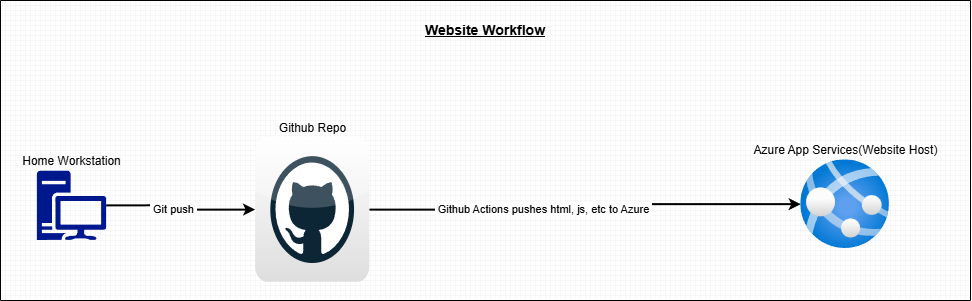

Web Deployment Flow

• Make website .html, .js, .css changes with the help of AI overlords (I don’t know js or html really; I’m a network/systems engineer who just learned terraform and python some).
• Run git add
• Run git commit -m "notes on commit here"
• Run git push
• GitHub Actions uses RBAC permissions (service principal) to deploy/update resources in Azure.
• Website is updated!

More Details

• App Service: Linux B1 subscription, runs the public web site. Secure settings, custom domain, HTTPS enforced.
• Azure Function: Used for backend logic like saving and reading snake game high scores. Uses managed identity to access storage. (still working on this)

Source Code & Infrastructure

All code and Terraform for this project is public: GitHub Repository

What’s Next? I'm going to keep adding diagrams on information flow and keep adding complexity. (logging, pushing azure app data to website, making snake game better, etc)
